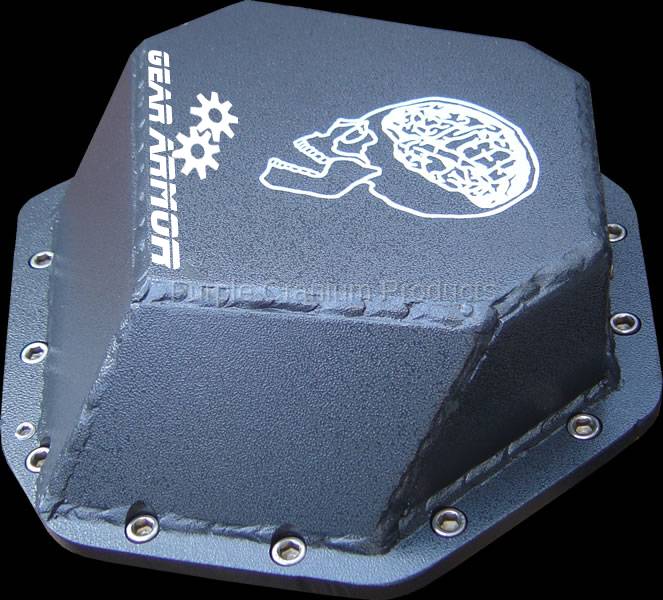

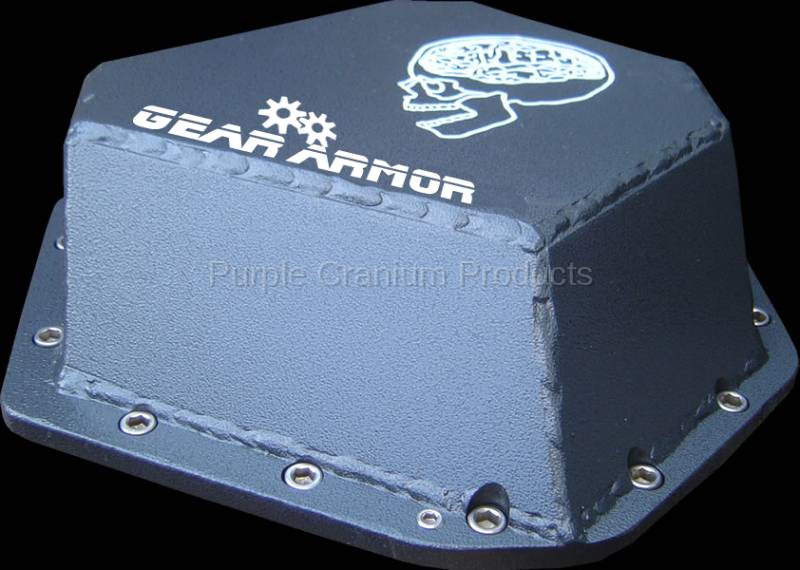

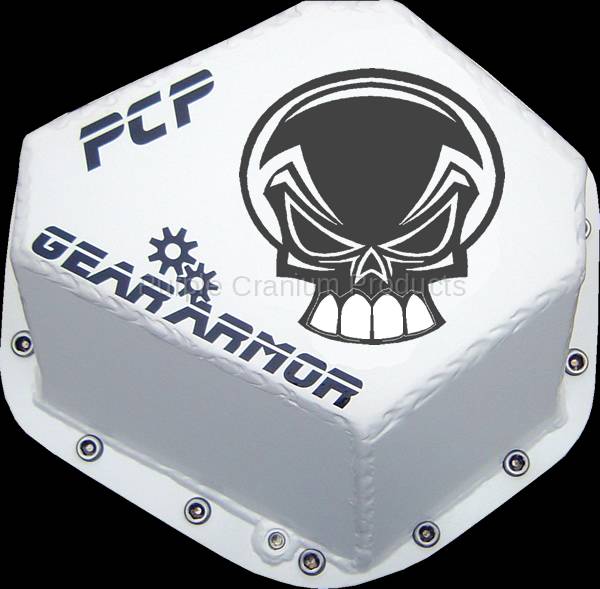

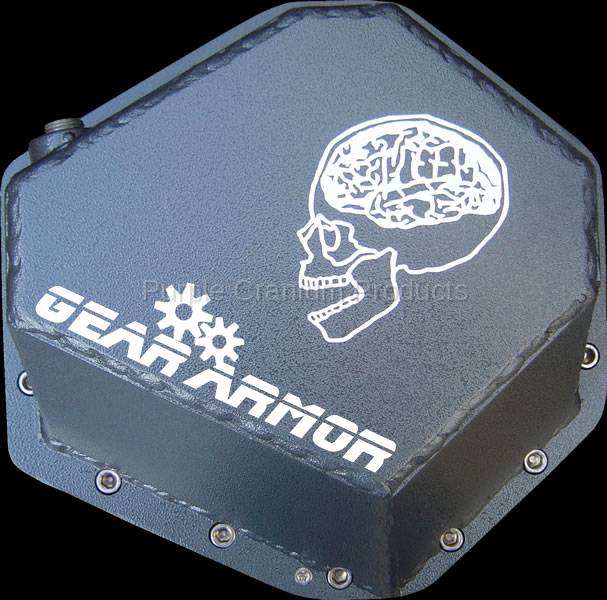

Chevy 14 Bolt Gear Armor Cover


GEAR ARMOR COVER for the Chevy 14 Bolt The name says it all, this is the strongest differential cover on the market. Starting with a .500 thick steel flange that is CNC plasma cut for an exact fit for the Chevy 14 Bolt axle, then the .375 thick cold rolled steel exterior is cut and welded into place, inside and out. Cover features 45 deg. Bottom angle faces, to deflect rocks rather than sitting on top of them. An integrated stainless steel drain plug that cannot be sheared off, a stainless steel top fill plug and combination dipstick to make filling and checking fluid levels a breeze. A heavy-duty magnet is epoxied on the inside bottom of the cover to catch any metal particles that may be in your fluid; all mounting holes are counterbored to protect the stainless steel mounting bolts. The Gear Armor Cover will replace the stock rear cover. A stock Chevy 14 Bolt cover weighs 2 pounds, the Gear Armor Cover 10.5 RG weighs in at 18 pounds, 18 pounds of solid steel protection. All covers are powder coated a black hammertone inside and out and all stainless steel fasteners are included. If you are looking for a bulletproof top shelf cover, look no further.

Fits 10.5" RG:

*73-95 Chevy/GMC 3/4 and 1 Ton 2WD/4WD Rear

*75-00 Chevy/GMC Duallie 2WD/4WD Rear

*88-99 Suburban 3/4 Ton 2W/4WD Rear

Not Available
Pricing: $178.00


This item is not in stock, will take up to 4 weeks to ship.


  • 63241
  • 63241
  • New


Shipping Information

  • Item Requires Shipping
  • 26.0 lbs.
  • W14.0000” x H6.0000” x L14.0000”
  • $2.00
